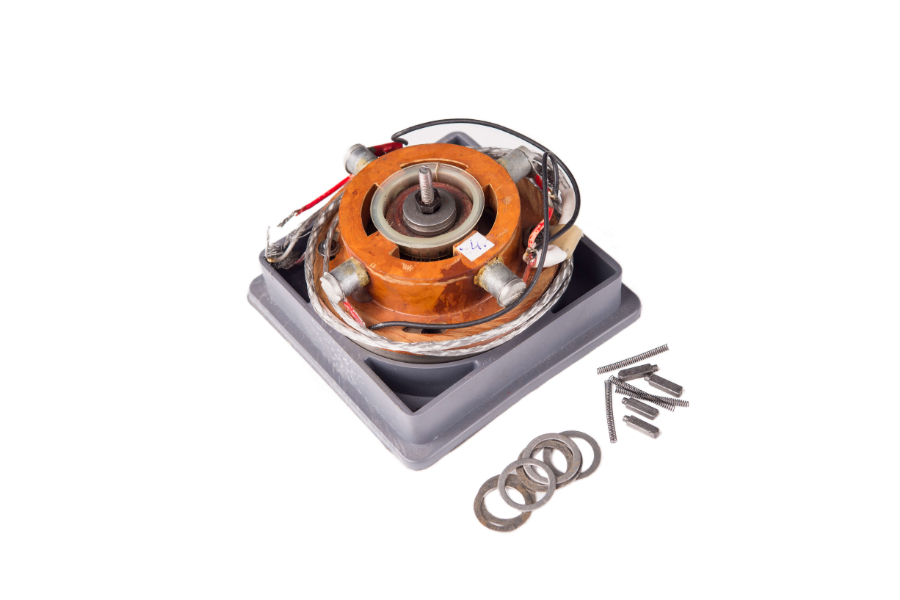

Image of the electric motor TP-75-20-02
Drawing of the electric motor TP-75-20-02

The tachogenerator TP-75-20-02 is designed to be used with electric motors operating in controlled DC electric drives.

The steepness of the output voltage, mV rpm - 20 + 4
Rated rotation speed, rpm - 3000
Maximum speed, rpm - 6000
Minimum rotation speed, rpm - 0.1
Load resistance, kOhm, not less than - 10
Accuracy in the range of rotational speeds
30-4000 rpm,% no more - 0.2
Ripple coefficient at maximum speed,% - 1,0
Weight, kg., No more - 0.5
SG1 brushes
